單位：mm

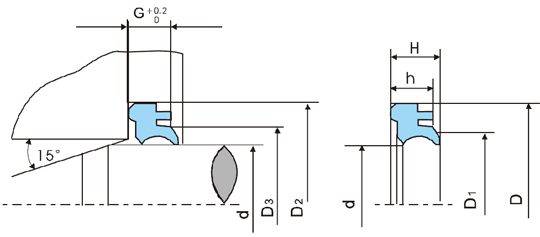

編號(hào)

d

D

D1

h

H

G

D2

D3

Y-PTQ15

15

22

18

5.5

7.5

6

22.5

18.6

Y-PTQ16

16

21.3

18

4.2

5.7

4.7

22.9

18.6

Y-PTQ16-1

16

23.8

17.5

5

6.5

5.5

22.4

18.1

Y-PTQ20

20

27

22

6

7.5

6.5

27.6

22.6

Y-PTQ20-1

20

27.5

22.5

5

6.5

5.5

28.1

23.1

Y-PTQ25

25

31.5

27

6.5

8

7

32.1

27.6

Y-PTQ25-1

25

32.5

28

6.3

7.8

6.8

33.1

28.6

Y-PTQ28

28

36

31

5.7

7.2

6.2

36.6

31.6

Y-PTQ28-1

28

36.7

30.5

7

8.5

7.5

37.3

31.1

Y-PTQ30

30

38.8

32.5

6

7.5

6.5

39.4

33.1

Y-PTQ30-1

30

39

32.7

6.3

7.8

6.8

39.6

33.3

Y-PTQ35

35

44.5

39

5

6.5

5.5

45.1

39.6

Y-PTQ35-1

35

44.7

37

7

8.5

7.5

45.3

37.6

Y-PTQ35-2

35

45

39

7

8.5

7.5

45.6

39.6

Y-PTQ40

40

49

42.7

6

7.5

6.5

49.6

43.3

Y-PTQ45

45

55

47.2

6.5

8.5

7

55.6

47.8

Y-PTQ45-1

45

54

47.2

6

8.0

6.5

54.6

47.8

Y-PTQ50

50

59

52.2

6.5

8.0

7

59.6

52.8

Y-PTQ55

55

68

59

7

8.5

7.5

68.6

59.6

Y-PTQ70

70

81.5

76.8

9.5

11.5

10

82.3

77.6

Y-PTQ80

80

97.5

86.8

9.5

11.5

10

98

87.5

Y-PTQ90

90

107.5

96.3

9.5

11.5

10

108.3

97.1

由于產(chǎn)品不斷更新,更多規(guī)格請(qǐng)來電問。
